EPDM sealing strip is consisted of sponge EPDM rubber and strong self adhesive tape.  It’s widely used in doors and windows field, it has good performance of anti-aging, anti-deformation, anti-UV and sound insulation.

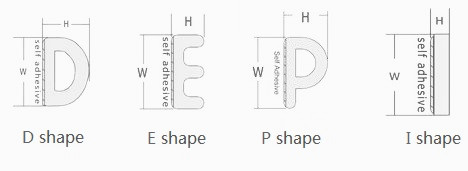

The common shapes include E, D, P and I.

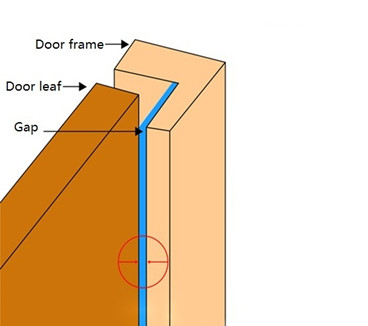

How can we find the suitable profiles ? 1. measure the gap

2. find sealing strip according to following instruction:
I shape of 9x2mm, seal 1-2mm gap
P shape of 9x4mm, seal 2.5-3.5mm gap
E type of 9x4mm, seal 3.5-5.5mm gap
D type of 9x6mm, seal 3.5-5.5mm gap
D type of 9×7.5mm, seal 4-7mm gap
D type of 14x12mm, seal 7.5-11.5mm gap.
Of course, we ( Star Seals company ) can also provide customized sealing strips.

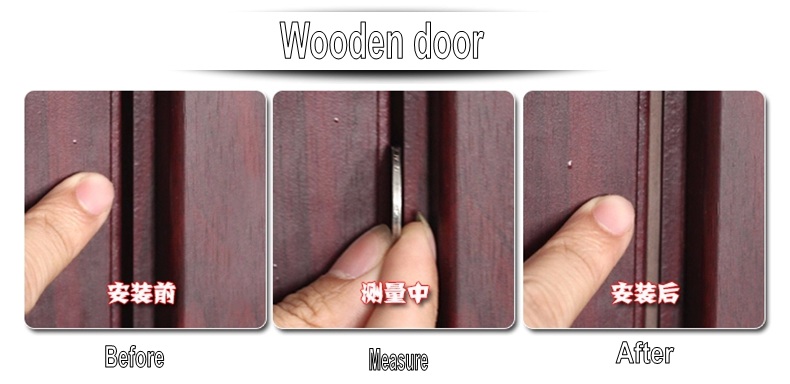

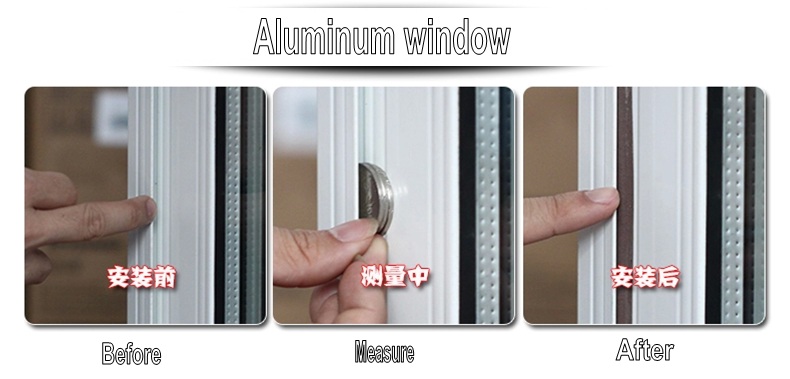

Some cases for your referrence:

Welcome to contact us for details!
